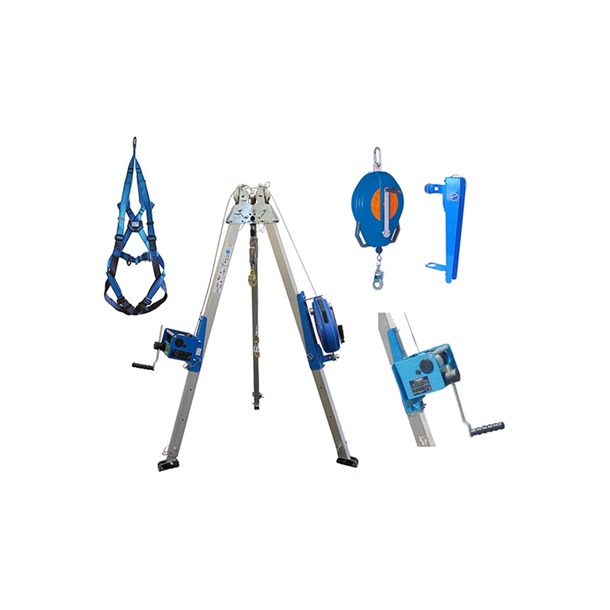

30mtr Confined Space Tripod Kit | Tractel Tracpode CSK7

Product Information

The Tracpode is a high-performance, temporary anchor point designed for both fall arrest and lifting applications. It is thoroughly tested to arrest the fall of two users, each weighing up to 150kg, including their equipment and tools. For lifting operations, the Tracpode can support a maximum load of 500kg, provided the strap is correctly secured to the feet.

Thanks to its compact design and lightweight aluminium construction, the Tracpode is perfectly suited for use in confined spaces, rescue operations, and load handling. Its foldable frame makes it easy to transport and store, fitting into most vehicles without issue.

At the top, the Tracpode features three integrated anchor points:

• 2x fall arrest anchor points compatible with a range of evacuation or fall arrest systems (up to 150kg each)

• 1x lifting anchor point that supports a Chainblock or Electric Hoist up to 250kg—or up to 500kg when used with the foot strap

Product Features

• Dual functionality for fall arrest and material lifting
• Built from lightweight aluminium (only 23kg without accessories)
• Three anchor points for multiple use cases:
• 2x for fall arrest (150kg each)
• 1x for lifting (250–500kg)
• Foldable design for ease of transport and compact storage
• Adjustable working height from 1.78mtr to 2.73mtr below the head
• Leg span adjusts from 1.03mtr to 1.58mtr depending on height setting
• Leg extensions increase in 20cm increments for precise setup
• Tubular legs provide high strength and rigidity
• Integrated locking pins and spring-loaded clips, secured with cables to prevent loss
• Quick installation with minimal setup effort
• Compliant with Machinery Directive 2006/42/CEE

Product Specification

• Material: Tubular Aluminium & Rubber
• Weight: 23kg (Without Accessorys)
• Maximum User Weight: 150kg (Per Fall Arrester)
• Conforms to EN Standard: EN 795 Type B
• Produced & Manufactured in Luxembourg
