IKAR DBA3 Rescue Tripod & Recovery Fall Arrest Block Kit

IKAR DBA3 Rescue Tripod & Recovery Fall Arrest Block Kit

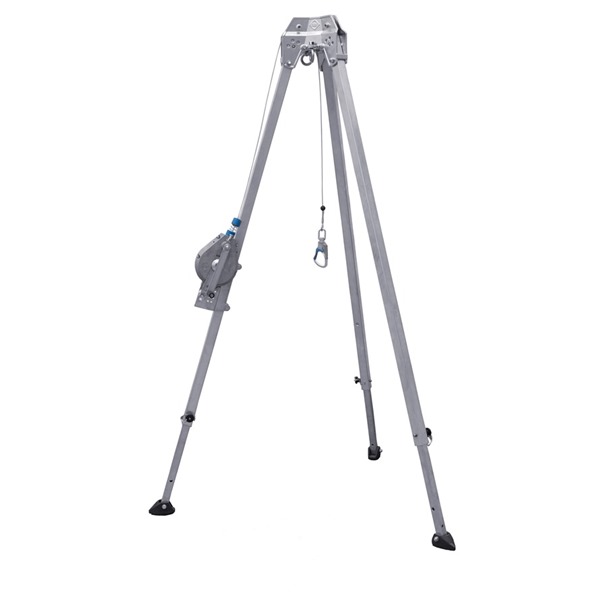

This IKAR DBA3 Kit comprises of the DB-A2 Tripod, HRA Fall Arrest Block with Recovery and Tripod Bracket

Available with 12mtr, 18mtr, 24mtr, 30mtr, 42mtr or 65mtr Fall Arrest Block with Recovery

Tripod spec:-

• EN795
• Aluminium construction
• High functional stability
• High quality and reliability
• Load carrying capacity: 2 persons max
• Foldable rubber feet
• Corrosion resistant coating
• Two eye bolts in the head of the tripod
• Integral pulleys in the head of the tripod, at the top of each leg
• Stainless steel leg locking pins
• Mountable accessories available
• Weight: 24kg

HRA Fall Arrest Block spec:-

Fall arrest device with rescue lifting and lowering facility, equipped with a recovery mechanism operated by a device mounted handle.  After an arrested fall, or if the user becomes incapacitated at the bottom of a shaft, the recovery mechanism can easily be engaged by a second person to raise or lower the person to a place of safety

• Conforms to EN360
• Aluminium housing, with a galvanised steel cable lifeline
• With release pin and two-way winding handle, to engage rescue/recovery mode
• Fixed handle anchor attachment point
• Attachment/connection handle or can be fitted to a davit or tripod via a bracket
• Aluminium double action hook on end of lifeline to EN362
