Lyon 30cm Stainless Steel Edge Guard Protector

LYON 30cm STAINLESS STEEL EDGE PROTECTOR

Versatile, compact and lightweight, the EDGE GUARD'S (patented) clever design stems from the unique knowledge and experience of the Lyon Equipment team

Made entirely from polished stainless steel with rope friendly contact surfaces, it's angular shapes on the end plates and load bearing surfaces are there to make the most efficient use of the forces created when a rope is loaded.

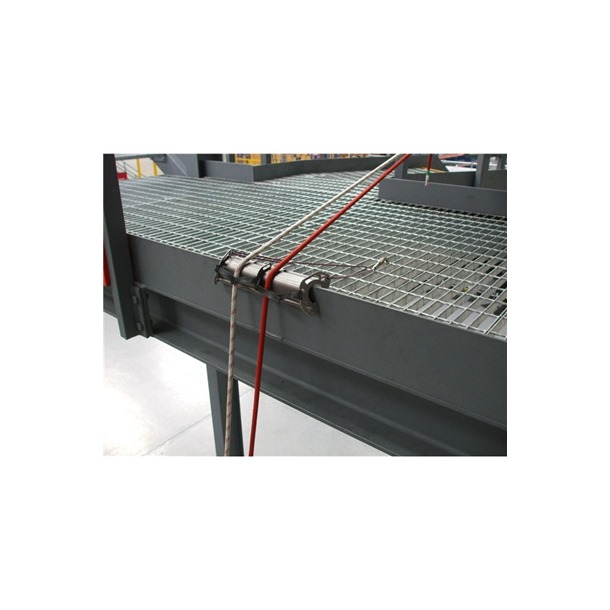

When used on plate edges such as steel toe boards, the four triangular "teeth" on the end plates grip the edge with a camming action.

The more rope pressure applied to the EDGE GUARD the firmer onto the edge it locks, reducing it's potential for movement.

This stainless steel EDGE GUARD may be used with rope conforming to EN1891, of diameter 9mm to 13.5mm.

Product features:-

• Versatile, compact and lightweight.
• The angled end plates keep the rope and centre of gravity well within the footprint of the rope edge guard, helping to keep it stable.
• When used on plate edges such as steel toe boards, the "teeth" on the edge plates hook onto the edge with a camming action.
• The more rope pressure applied to the edge guard, the more it grips onto the edge, reducing it's potential for movement.
• Each stainless steel edge protector is supplied with adjustable securing cord and a spare length of securing cord.
• Stainless steel body ensures a long service life.
• Operational width: 30cm
• Designed for two ropes
• Max weight use: 250kg

​
